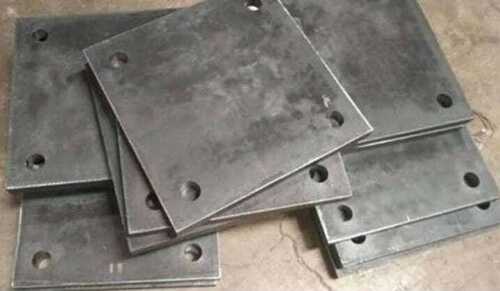

Structural Base Plates: Engineering Secure Foundations
A base plate is a thick steel plate welded to the bottom of a structural column or support post to distribute heavy point loads from the column over a larger surface area of the concrete foundation or slab, preventing the concrete from cracking or crushing under the concentrated stress.
In heavy structural steel construction, a building is only as reliable as its foundation connection. At Afritec Steel Fabricators, our structural base plates serve as the vital interface between steel columns and concrete foundations, ensuring uniform load transfer and structural integrity across every warehouse, steel tanks, steel tank towers, commercial buildings frame, and other steel structures we erect.
Key Structural Functions
- Load Distribution: Spreads heavy axial compression forces and bending moments from vertical steel columns over a broader area of the concrete pedestal, preventing crushing or cracking.
- Anchoring & Uplift Resistance: Secures structural columns against dynamic wind loads and seismic forces through high-tensile anchor bolt integration.
- Precision Leveling: Enables exact vertical plumbing and horizontal leveling during site installation using leveling nuts, shim packs, and non-shrink cementitious grout.
Custom Base Plate Fabrication Capabilities
| Type | Engineering Purpose | Standard Application |
| Pinned / Simple Base Plates | Transfers axial compression and vertical shear without significant moment transfer. | Standard warehouse columns, light storage sheds, mezzanines |
| Fixed Base Plates | Thick, heavy-duty plates designed to resist substantial bending moments and lateral forces. | Multi-storey steel frames, heavy industrial portal frames, crane gantries |
| Stiffened Base Plates | Reinforced with welded vertical gusset plates to prevent base deformation under high point loads. | High-bay structures, heavy machinery supports, elevated steel towers |
| Leveling Grout Base Plates | Installed with clearance for high-strength non-shrink grout to eliminate foundation voids. | Heavy industrial equipment pads, primary structural column foundations |
Fabricated to Exact Tolerances
Every base plate fabricated at Afritec Steel Fabricators is precision-cut from structural steel (grades A36, S275, or S355), pre-drilled for anchor bolt positioning, and finished with protective anti-corrosion coatings to withstand demanding environmental conditions across East Africa.
